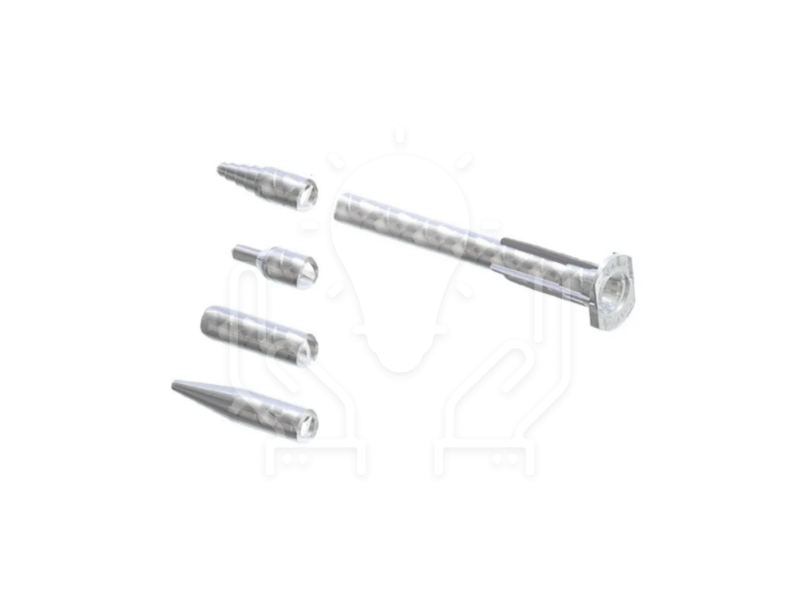

The Sulzer Statomix MAH (formerly MA Series) is a bayonet style mixer with a twist and lock mount for 1:1 and 2:1 adhesive dispensing. Locking the MAH mixer into place automatically aligns the first element when using the Sulzer A System Kit.
The MAH mixer comes in with a wide variety of elements and styles able to mix almost any two part material including silicone, epoxy, urethane, acrylic or polyester. Aside from manual application, the MAH mixers can also be used in low pressure meter mix dispensing.
|
|
|
| Type
|
Static Mixer
|
| Brand
|
Sulzer Mixpac
|
| Connection Type
|
Bayonet
|
| Adhesive Ratio
|
1:1, 2:1
|
| Cartridge Size
|
25 ml, 50 ml, 75 ml
|
| Sulzer System
|
A System, Q System
|
|
|
The Sulzer Statomix MAH (formerly MA Series) is a bayonet style mixer with a twist and lock mount for 1:1 and 2:1 adhesive dispensing. Locking the MAH mixer into place automatically aligns the first element when using the Sulzer A System Kit.
The MAH mixer comes in with a wide variety of elements and styles able to mix almost any two part material including silicone, epoxy, urethane, acrylic or polyester. Aside from manual application, the MAH mixers can also be used in low pressure meter mix dispensing.
|
|
|
| Type
|
Static Mixer
|
| Brand
|
Sulzer Mixpac
|
| Connection Type
|
Bayonet
|
| Adhesive Ratio
|
1:1, 2:1
|
| Cartridge Size
|
25 ml, 50 ml, 75 ml
|
| Sulzer System
|
A System, Q System
|
|
|
|
| Sulzer MixPac MAH Specification by Part Numbers
|
| Part Number
|
Article/Number
|
Elements
|
Ø(mm)
|
L(mm)
|
Vol. (ml)
|
| 102361
|
MAH 03-07S
|
7
|
3
|
34
|
0.24
|
| 102362
|
MAH 03-13S
|
13
|
3
|
57
|
0.36
|
| 102364
|
MAH 03-17S
|
17
|
3
|
63
|
0.34
|
| 102365
|
MAH 04-13D
|
13
|
4
|
62
|
0.6
|
| 102366
|
MAH 04-13S
|
13
|
4
|
66
|
0.6
|
| 102367
|
MAH 04-17D
|
17
|
4
|
78
|
0.75
|
| 102368
|
MAH 04-17S
|
17
|
4
|
82
|
0.75
|
| 102369
|
MAH 05-07T
|
7
|
5.4
|
56
|
0.8
|
| 102370
|
MAH 05-13D
|
13
|
5.4
|
79
|
1.36
|
| 102371
|
MAH 05-13T
|
13
|
5.4
|
85
|
1.36
|
| 102360
|
MAH 0517-0413T
|
17+13
|
5.4/4.0
|
150
|
2.07
|
| 102372
|
MAH 05-17T
|
17
|
5.4
|
104
|
1.68
|
| 102373
|
MAH 05-21T
|
21
|
5.4
|
124
|
2.01
|
| 102375
|
MAH 06-12D
|
12
|
6.3
|
85.8
|
2.08
|
| 102377
|
MAH 06-12T
|
12
|
6.3
|
97
|
2.08
|
| 102378
|
MAH 06-17T
|
17
|
6.3
|
128.5
|
2.94
|
| 102379
|
MAH 06-21L
|
21
|
6.3
|
151
|
3.33
|
| 102380
|
MAH 06-21T
|
21
|
6.3
|
153
|
3.57
|
|
|
|
|
|
|
