During operation, controlled pulsed air acts on the piston to withdraw the needle a preset distance from the needle seat to provide exact, repeatable fluid flow. The stainless steel needle seats in the tip adapter, virtually eliminating dead fluid volume between shots.
The Nordson EFD needle valve features adjustable fluid flow control. |
| |
Available Models
|
| |
| 741V Series |
| Actuated by an external solenoid and operates at more than 400 cycles per minute at pressures up to 300 psi (20.7 bar). |
| |
| 741V with BackPack™ Valve Actuator |
Actuated by a compact solenoid installed on the valve’s actuating air cylinder, creating a faster response time and less variation in shot size due to plant air supply or air line length fluctuation. Achieves air actuation speeds as short as 5 to 6 milliseconds and cycle rates up to 800 cycles per minute.
Note: The BackPack is also available separately for installation on existing 741V needle valves. |
| |
| Also available, the xQR41 MicroDot™ needle valves provides precise fluid dispensing control for deposits as small as 150 µm diameter. And the xQR41V needle valve delivers exceptional deposit accuracy and repeatability for applications that require larger deposits or a wider range of dispensing tips. Both valves feature an innovative Quick Release clasp that reduces downtime, a 60% smaller form factor, and modular design. |
| |
|
|
| |
During operation, controlled pulsed air acts on the piston to withdraw the needle a preset distance from the needle seat to provide exact, repeatable fluid flow. The stainless steel needle seats in the tip adapter, virtually eliminating dead fluid volume between shots.
The Nordson EFD needle valve features adjustable fluid flow control. |
| |
Available Models
|
| |
| 741V Series |
| Actuated by an external solenoid and operates at more than 400 cycles per minute at pressures up to 300 psi (20.7 bar). |
| |
| 741V with BackPack™ Valve Actuator |
Actuated by a compact solenoid installed on the valve’s actuating air cylinder, creating a faster response time and less variation in shot size due to plant air supply or air line length fluctuation. Achieves air actuation speeds as short as 5 to 6 milliseconds and cycle rates up to 800 cycles per minute.
Note: The BackPack is also available separately for installation on existing 741V needle valves. |
| |
| Also available, the xQR41 MicroDot™ needle valves provides precise fluid dispensing control for deposits as small as 150 µm diameter. And the xQR41V needle valve delivers exceptional deposit accuracy and repeatability for applications that require larger deposits or a wider range of dispensing tips. Both valves feature an innovative Quick Release clasp that reduces downtime, a 60% smaller form factor, and modular design. |
| |
 |
 |
Engineered for the most demanding manufacturing environments
|
|
|
|
| Nordson EFD valve systems are proven to provide precise, reliable fluid dispensing control for tens of millions of trouble-free cycles before maintenance is required. |
|
| |
 |
|
The Complete Valve System
|
|
|
|

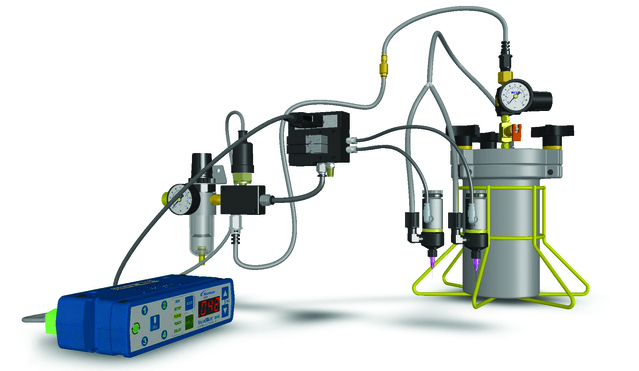

| The complete system includes the 741V dispense valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. For even faster throughput, integrate with an EFD automated dispensing system. |
|
|
| 741V Needle Valves |
| Part # |
Description |
Specification |
| 7007029 |
741V-SS Valve |
Air cylinder and fluid body is passivated 303 stainless steel. Includes fluid inlet fittings #7021499 and #7007038. |
| 7015584 |
741V-SS-BP Valve |
Air cylinder and fluid body is passivated 303 stainless steel. Includes fluid inlet fittings and BackPack valve actuator. |
|
|
|
|
