Sulzer Mixpac MBH (MB) Series Static Mixer Nozzles

home > Products> Industrial Supply> Sulzer Mixpac MBH (MB) Series Static Mixer Nozzles

Sulzer Mixpac MBH (MB) Series Static Mixer Nozzles

P027

Product Description

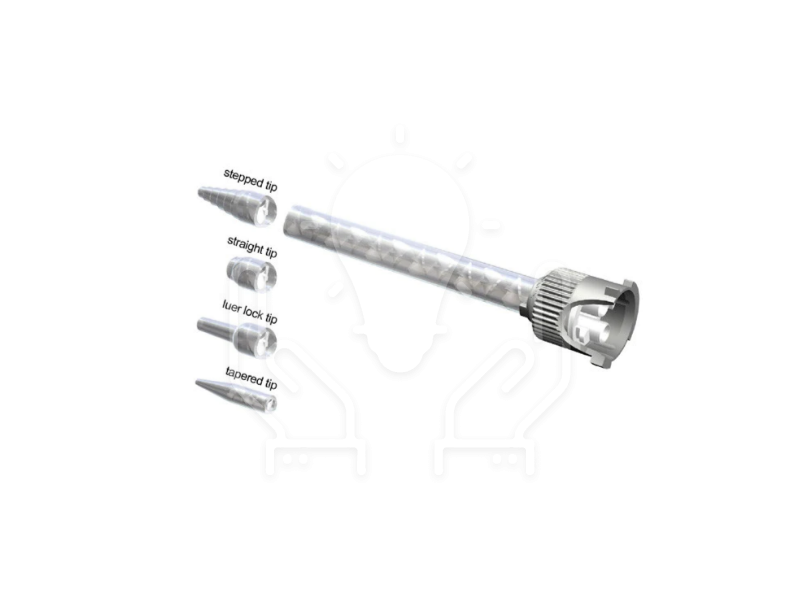

The Sulzer Mixpac MBH Series (formerly MB Series) mixers can be used with the Sulzer B system components and connect with a twist and lock system. The MBH mixer is for 1:1 and 2:1 adhesive dispensing.
The MBH static mixer is different from other mixers in that it uses a divided outlets at the point of the cartridge and mixer keeping materials from plugging and contaminating before they are supposed to be mixed.

Type	Static Mixer
Brand	Sulzer Mixpac
Connection Type	Twist and Lock, Sulzer B Series
Adhesive Ratio	1:1, 2:1
Cartridge Size	25 ml, 50 ml, 75 ml
Sulzer System	B System

Type	Static Mixer
Brand	Sulzer Mixpac
Connection Type	Twist and Lock, Sulzer B Series
Adhesive Ratio	1:1, 2:1
Cartridge Size	25 ml, 50 ml, 75 ml
Sulzer System	B System

Sulzer MixPac MBH Specifications & Part Numbers
Part Number	Article/Number	Elements	Ø(mm)	L(mm)	Vol. (ml)
116457	MBH 03-12D	12	3.2	58	0.49
116458	MBH 03-12S	12	3.2	63.5	0.49
116459	MBH 03-16D	16	3.2	70.7	0.63
116460	MBH 03-16L	16	3.2	75.8	0.63
116461	MBH 03-16S	16	3.2	76.5	0.59
116462	MBH 04-12D	12	4.2	69.5	0.84
116463	MBH 04-16D	16	4.2	86.2	1.04
116464	MBH 04-16S	16	4.2	96	1.04
116575	MBH 05-06T	6	5.4	59.3	0.94
116465	MBH 05-12D	12	5.4	82.5	1.52
116466	MBH 05-14D	14	5.4	111.8	1.91
116467	MBH 05-16T	16	5.4	111.8	1.91
116468	MBH 05-20T	20	5.4	132.8	2.29
116469	MBH 06-11D	11	6.5	88.5	2.28
116470	MBH 06-16T	16	6.5	131	3.14
116471	MBH 06-20T	20	6.5	157	3.76
116472	MBH 07-11D	11	7.5	91.5	3.05
